Slim Line Housings are the an excellent choice for low-flow filtration applications. Their slim design and high chemical compatibility make them ideal for those challenging applications. All are equipped with 1/2" NPT inlet and outlet ports.
They are moulded from rugged reinforced polypropylene.
Filter Housings Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
Housing –Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap – Reinforced polypropylene
Button Assembly – 300 Series stainless steel, EPDM, and polypropylene
Temperature Rating – 40-125°F (4.4-51.7ºC)
Maximum Pressure – 125 psi (8.6 bar)
Slim design reduces space required for installation without sacrificing capacity
Available in 5", 10" and 20" lengths
Optional pressure relief button on inlet side of cap
Leak-proof seal
Available with clear or opaque sumps
Specifications
Pentair is a global leader in filtration and processing solutions , fluid & thermal management, and equipment protection businesses with 30,000 employees, over 100 manufacturing facilities & 90 service centers presence in 6 continents globally. Pentair’s dedicated professional team work around the globe to deliver industry leading products, services and solutions for their customers’ diverse needs in water and other fluids, thermal management and equipment protection. Pentair’s inventive thinking, collaborative spirit, disciplined work ethic and breadth of experts allows them to deliver inspired solutions for the rapidly changing world needs.

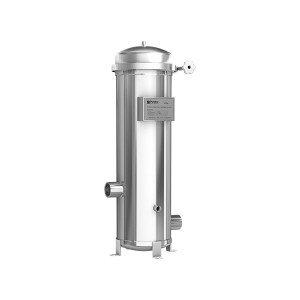

Puretec UFC Series Multicartridge Filter Housings
