Features:

• Flame Free Jointing. No hotworks permit required.

• Flame free installation makes for a safer job

• and shortened project times.

• Quick & simple to install. Faster than traditional solder methods, saves on time and material costs.

• WRAS Approved. Instantor Copper press fittings are WRAS approved. Imperial Approval # 2003301

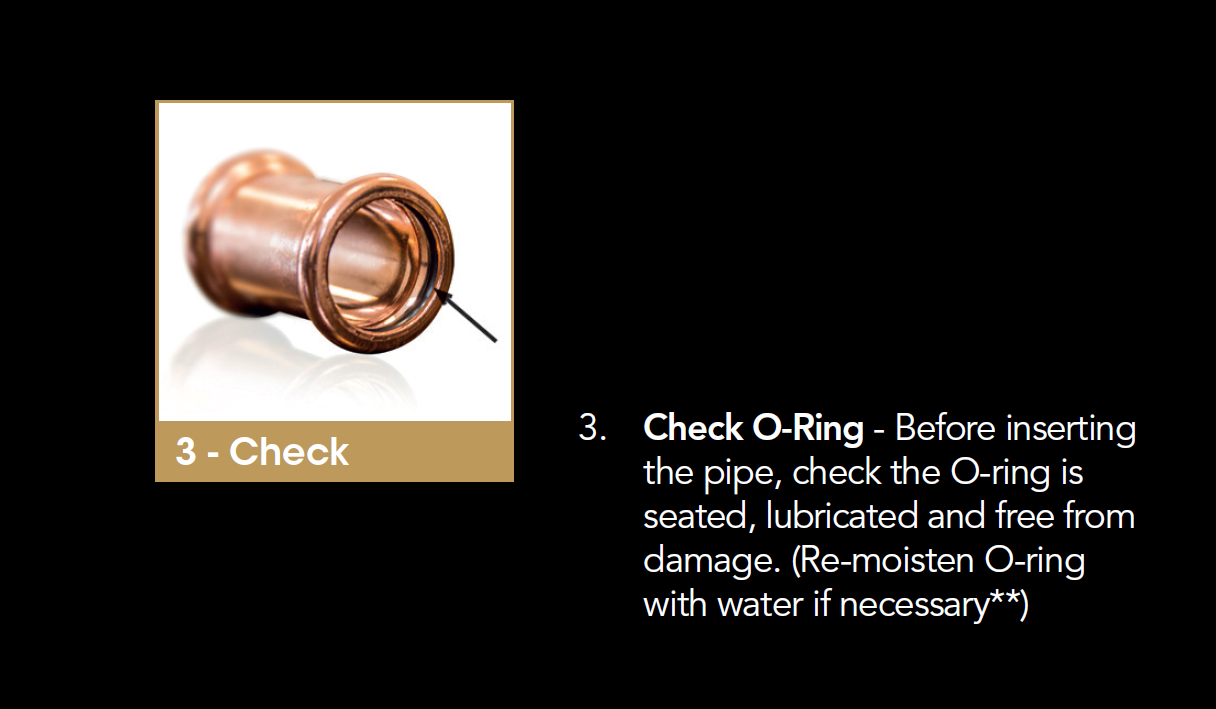

• EPDM O-Rings with Leak-Before-Press feature designed to identify un-pressed joints during system testing.

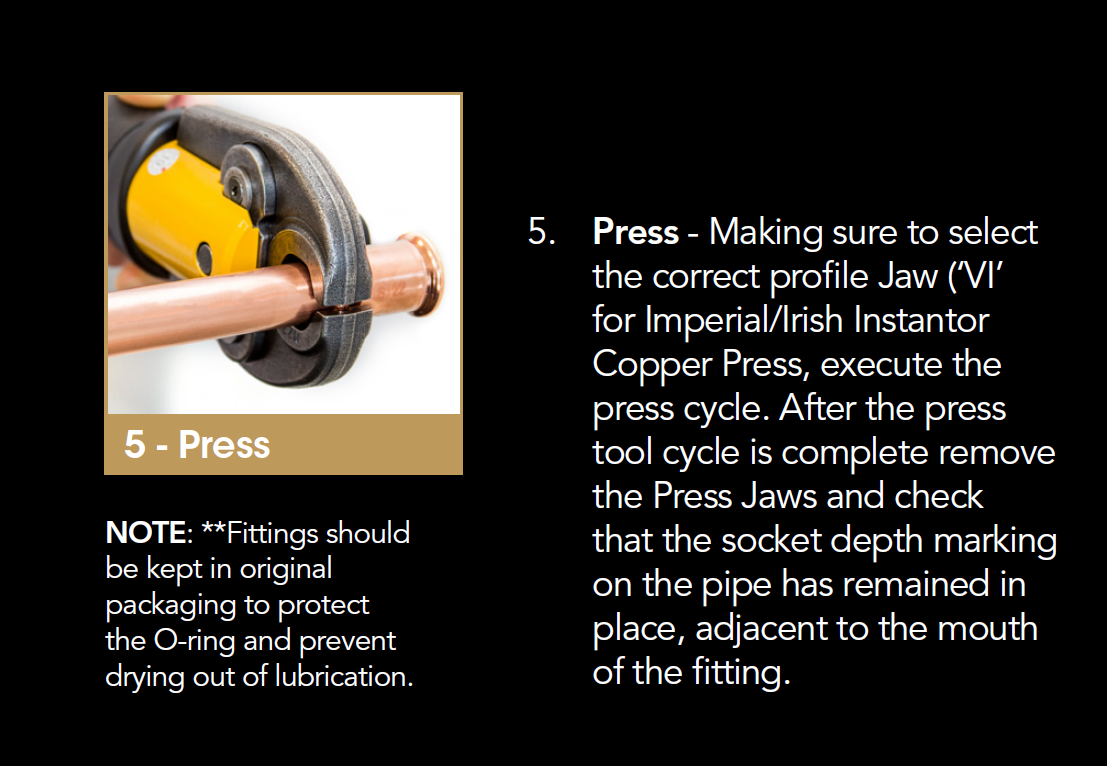

• ‘VI’ Profile jaw for Imperial fittings

• Operating Pressure/temperatures – 16bar @ 30°C, 10bar @ 95°C. Max 110°C, Min -25°C

• Aesthetically Pleasing Finish. Flux and heat free system provides for a neater, cleaner finish.

System Testing:

Testing of the system should be carried out to 1.5 times the working pressure of the system, up to a maximum of 16bar.

Space Between Fittings:

Minimum spacing between fittings is recommended as follows:

• 1/2” / 15mm - 10mm space

• 3/4” / 20mm - 20mm space

• 1” / 25mm - 20mm space

Warning:

Due care should be taken to prevent damage to copper press fittings and O-rings by heat transfer due to nearby brazing.

High temperature can anneal copper pipe making it too soft for press fit.

Guarantee:

Copper is known for its durability, corrosion resistance, thermal conductivity, and hygienic qualities. In some

cases, (e.g. chilled water lines) external protection may

be required to protect against corrosive conditions.

Instantor Copper Press fittings are guaranteed for 25 years provided they have been installed following correct procedure within operating conditions for which they are designed,

by a fully qualified plumber using the correct pressing equipment which holds a valid calibration certificate
