Suitable for:
indoor installations only
mains and low pressure systems
residential and commercial water heating applications
left or right hand plumbing connections
connection to open loop solar or hot water heat pump systems
Anode
Not required
Connections
Hot and cold water connections ¾ " (20 mm)
Construction
Inner cylinder: High grade duplex stainless steelOuter casing: Galvanised steel
Element
Incoloy 825 alloy sheath element positioned at the bottom of the tank.
Operating pressures
Maximum inlet pressure = 120 kPaMaximum working pressure = 120 kPa
Thermal insulation
CFC-free polyurethane foam, compliant with MEPS standard
Thermostat
Robert Shaw 30 A contact thermostat, manually resettable at 85 °C. Thermostat can be upgraded to an auto-reset thermostat for solar and hot water heat pump applications.
Weights
135L: 26.5kg empty, 161.5kg full
180L: 31.5kg empty, 211.5kg full
250L: 41kg empty, 291kg full
Cylinder recovery times (theoretical)
Based on a thermostat temp. setting of 60 °C and an incoming water temp. of 15 °C.
135 L = 3 hrs 56 mins (2 kW), 2 hrs 37 mins (3 kW)
180 L = 5 hrs 15 mins (2 kW), 3 hrs 30 mins (3 kW)
250 L = 7 hrs 17 mins (2 kW), 4 hrs 51 mins (3 kW)

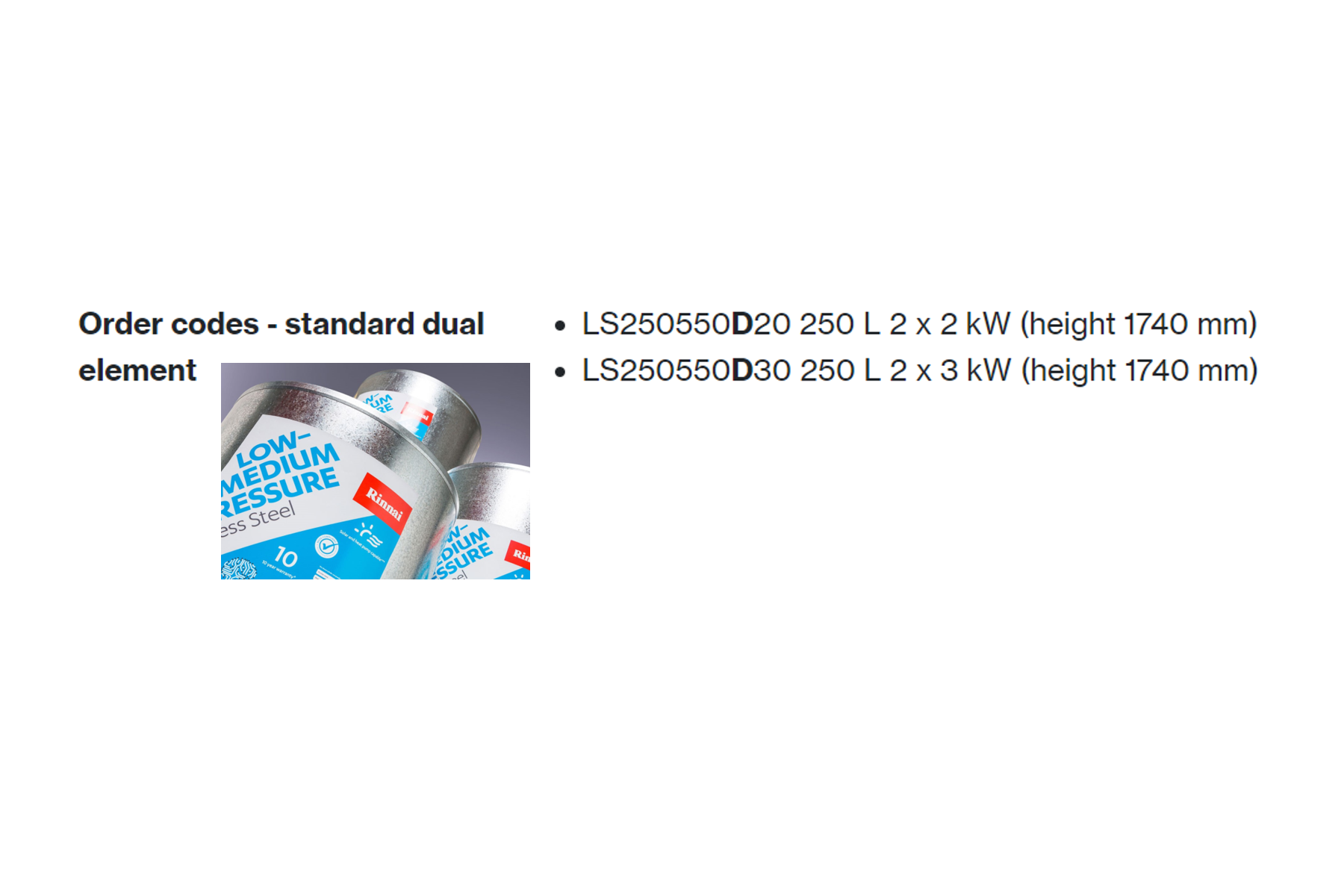

250 L = 3 hrs 39 mins (2 x 2 kW), 2 hrs 25 mins (2 x 3 kW)
Compliance
No cylinder wrap required. All Rinnai cylinders meet the NZ Minimum Energy Performance Standard (MEPS).

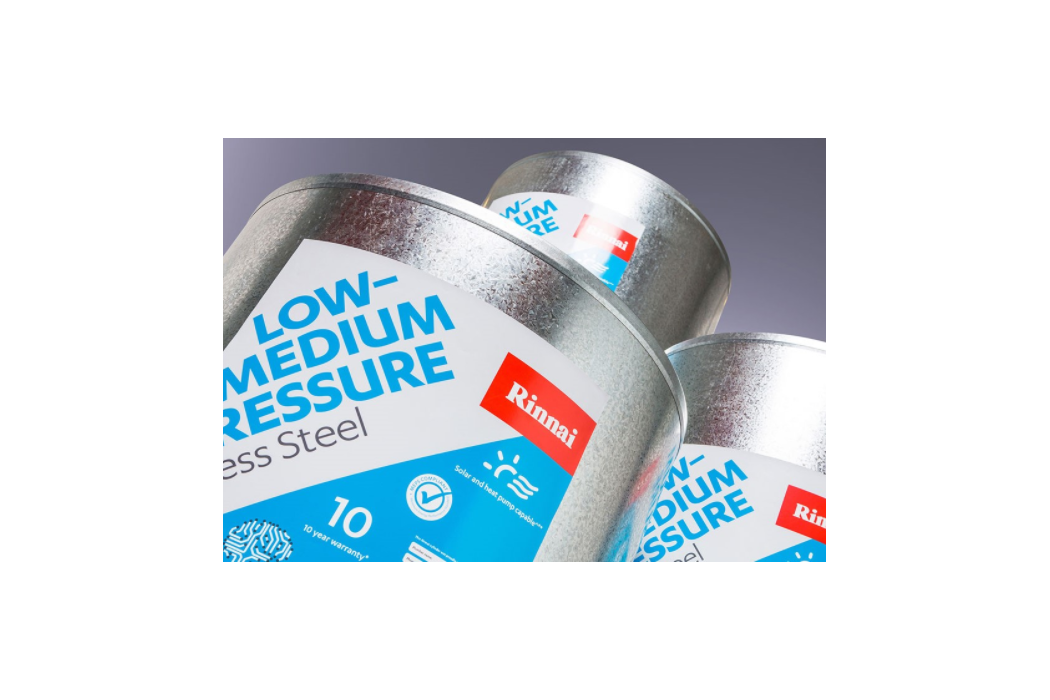

Constructed from high grade duplex stainless steel and packed with features to benefit specifiers, installers and homeowners, making them exceptional value for money.
Lightweight, stainless steel makes transport and installation a breeze
Low maintenance, no sacrificial anode to maintain
Auto-reset thermostat option means these cylinders can be solar or hot water heat pump ready

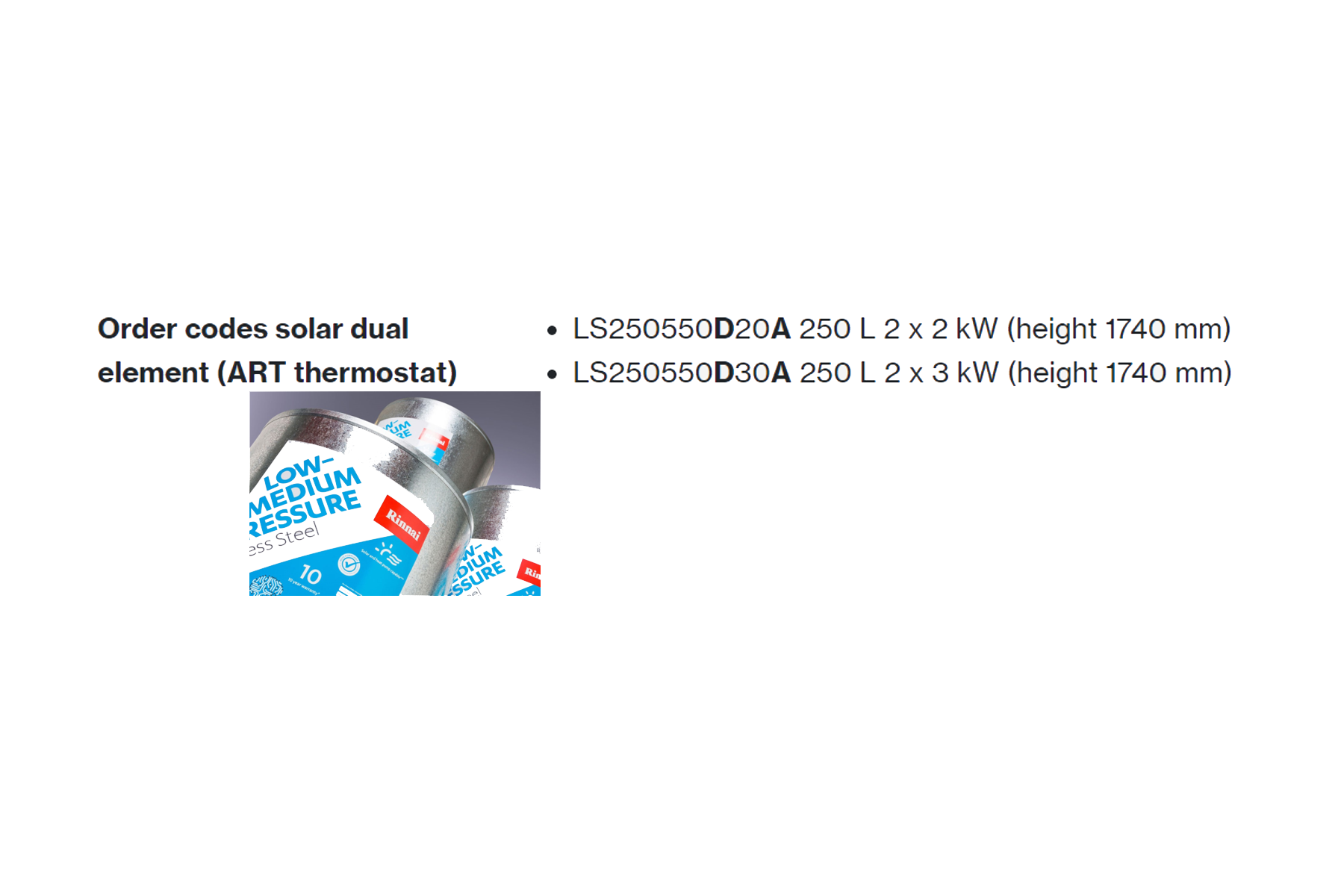

With the 180 L or 250 L, connect to a hot water heat pump or solar system with the extra eco inlet connection now or in the future. The 250 L cylinder also has the option of a second element making recovery times quicker and making it less likely you'll run out of water.
