Code: TT25F
Specific gravity – max: 1.2
Max working temperature: 30ºC
Raw material type: Medium density polyethylene
Raw material standards: AS/NZS 2070 – Food contact requirements
AS/NZS4020:2005 – Potable drinking water
AS/NZS4766 Polyethylene storage tanks for water
Complying water tank standard: AS/NZS4766 Polyethylene storage tanks for water
Maximum no. of moulded in outlets: 4
Outlet location(s) – standard: 1 & 7 o’clock
Other available locations – non standard: 5 & 11 o’clock
Lifting eyes: 4 (1, 5, 7 & 11 o’clock)
Bury up to 1000mm deep with clean backfill.
Super tough dome
Outlet(s): 1 x 100mm (4 inch) tank fitting and 1 x 50mm (2 inch) brass BSP fitting
11 colours
Empty weight: 475kg
Manhole size: 600mm (located at 6 o’clock)
Diameter: 3.5m
Overall height: 3m
Bottom of Overflow Panel: 2.5m
Overflow panels: 4 off (1, 5, 7 & 11 o’clock)
Height to dome part line: 2.29m
Outlet size: 1 x 100mm tank fitting and 1 x 50mm BSP
Residential - 20 Year Warranty
Commercial - 10 Year Warranty
Fire protection water storage tanks are invaluable in commercial and residential locations. Fire can be among the most disastrous tragedies that can hit any home or business, and it can happen any time. Safeguard properties and lives by having a fire water tank in place.
Devan’s fire water tank range consists of fire tanks in a variety of capacities from 15,000 up to 30,000L, and fire connection kits. 100% corrosion-free, emergency supply of water can be stored safely for extended periods. Manufactured to the highest standards utilising advanced technology, Devan tanks will last many useful years.

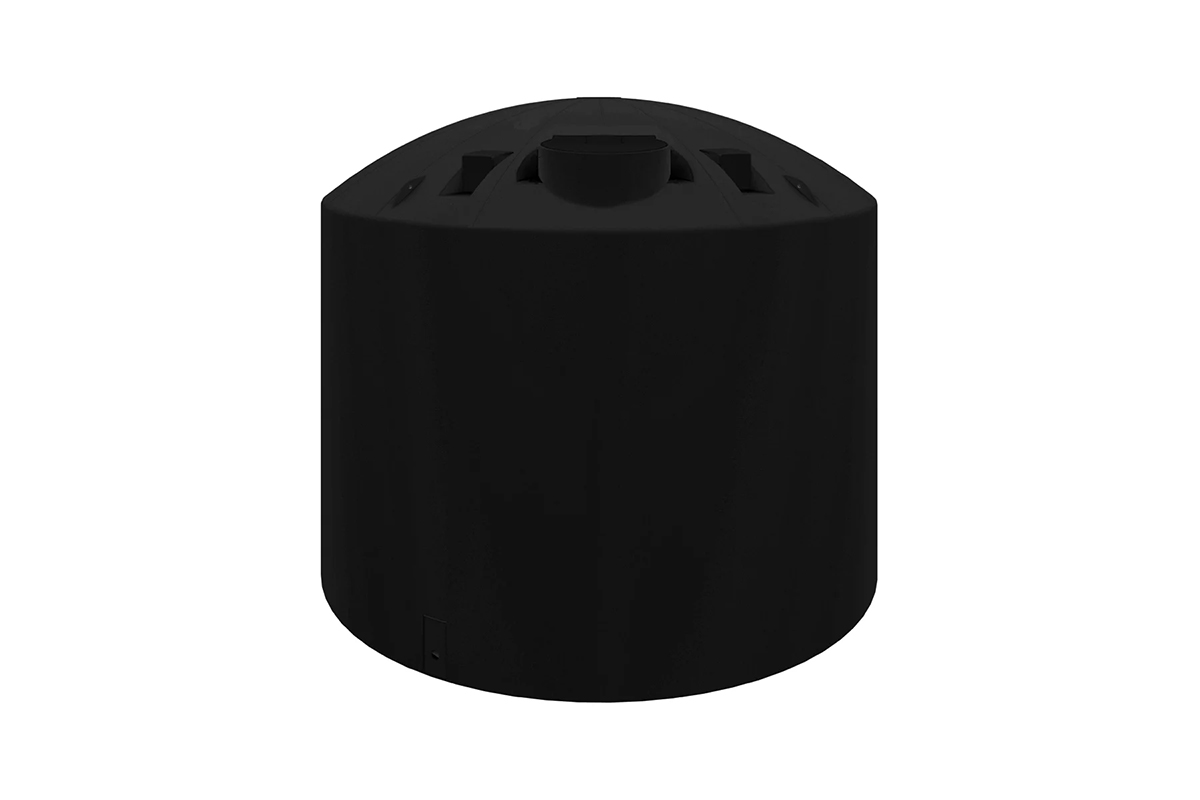

25,000 litres (5,500 gallons) Heavy duty Firetank (max Specific gravity 1.2)
15,000L Devan Heavy Duty Water Tank
425L Bailey ICON Water Tank
15,000L Devan Extra Heavy Duty Water Tank
