Code: TT05S
Specific gravity – max: 1.0
Max working temperature: 30ºC
Raw material type: Medium density polyethylene
Raw material standards: AS/NZS 2070 – Food contact requirements
AS/NZS4020:2005 – Potable drinking water
AS/NZS4766:2006 Polyethylene storage tanks for water
Complying water tank standard: AS/NZS4766:2006 Polyethylene storage tanks for water
Maximum no. of moulded in outlets: North Island: 3
Outlet location(s) – standard: North Island: 12 o’clock, South Island: 7 o’clock
Other available locations – non standard 5 & 7 o’clock
Lifting eyes: North Island: none, South Island: 3 & 9 o’clock
Free Shipping.
Bury up to 500mm deep with clean backfill.
Outlet(s): 1 x 50mm (2 inch) brass BSPT fittings
11 colours
Empty weight: North Island: 112.5kg, South Island: 100kg
Manhole opening size: 383mm North Island, 435mm South Island (located at 6 o’clock)

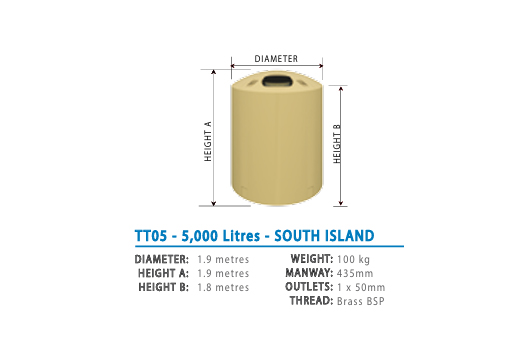

Diameter: 1.9m (North and South island)
Overall height: North Island: 2.3m, South Island 2.0m
Overflow height: North Island: 2m, South Island: 1.8m
Overflow panels: 3 off ( 5, 7 & 12 o’clock)
Height to dome part line: North Island: 1.94m
Outlet size: 50mm BSPT (1 off)
Outlet – base to centre line: North Island: 110mm
Residential - 20 Year Warranty
Commercial - 10 Year Warranty
Enjoy leak-free, convenient storage that offers easy access.
Devan above ground rainwater tanks are extremely durable and come in a variety of hard-wearing colours. Designed for maximum strength in the dome, your tank won’t cave in upon installation or servicing, nor will most snow loading have an effect. UV-stabilised, they’re constructed to withstand New Zealand’s harsh environmental conditions.
Devan Tanks are the only tank that comes with brass (or stainless steel) moulded in outlets. Having metal outlets allows for an easy plumb that is solid and eliminates any risk of cross threading. Better yet, the big tanks come with two of them as standard!
Devan Tanks come vented for domestic use as standard. Suctioned domes are the number one cause of failure with water tanks and this built-in feature, combined with the Devan vented overflow kits (optional extra), will eliminate this issue for Devan tank owners.
5,500 litres (1,200gallons) – NORTH ISLAND ONLY
5,000 litres (1,100 gallons) – SOUTH ISLAND ONLY
1,000L Bailey ICON Water Tank
900L Bailey ICON Water Tank
2,000L Devan Stormbank
