Flamesafe overheat protection
6 star energy rating
Digital display for easy fault diagnosis and service
Frost protected down to –20°C
Rheem EZ Link® compatible to link two units for increased delivery
Optional remote temperature controllers
**This indoor model must be installed using a certified Rheem flue system. Always check with local authorities that the installation complies with all regulations applicable in your area.
# People (Moderate Climate): 4-6
# People (Cold Climate): 4-5
Installation Location: Indoor
Water Connection Inlet & Outlet: RP ¾/20 mm
Number of Bathrooms: 2.5-3
Flow Rate (@ 25°C Rise): 27 L/min
Gas Input Max: 205 MJ/Hr
Weight Empty Approx: 24 kg
Gas Connection Size: RP ¾/20
Gas Type: Natural or ULPG
Min Gas Supply Pressure NG/ULPG: 1.13 kPa (Natural Gas), 2.75 kPa (ULPG)
Minimum Flow Rate: 2 L/min
Water Supply Pressure (Min): 140 kPa
Energy Rating: 6 Star
Water Supply Pressure (Max): 1000 kPa
Country of Manufacture: Japan
Dimensions: 650 x 351 × 240mm (H/W/D) HxW
Domestic Warranty: Parts (Parts/Labour): 3 Year
Domestic Warranty: Heat Exchanger (Parts/Labour): 10/3 Year
Non-Domestic Warranty: Parts (Parts/Labour): 1 Year
Non-Domestic Warranty: Heat Exchanger (Parts/Labour): 1 Year
CFGWH 8646 Series Installation Guide
864627LFZ Compliance Docs
Flue System Installation Instructions
CFGWH Dimensions
Recess Box & Pipe Cover Dimensions
Recess Box Replacement Guide
Gas Continuous Flow Hot Water Brochure
EZiSET Temperature Control Brochure
Working differently from traditional storage water heaters, gas continuous flow water heaters only heat water on demand rather than heating and storing water until needed.
Appliances can be conveniently mounted to, or recessed into your exterior wall, taking up less space. They are ideal for homes with high peak loads or when hot water is required occasionally, such as at a holiday home.

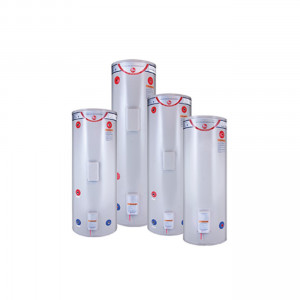

Rheem Low Pressure Copper Cylinders
Rheem Mains Pressure Stainless Steel Cylinders

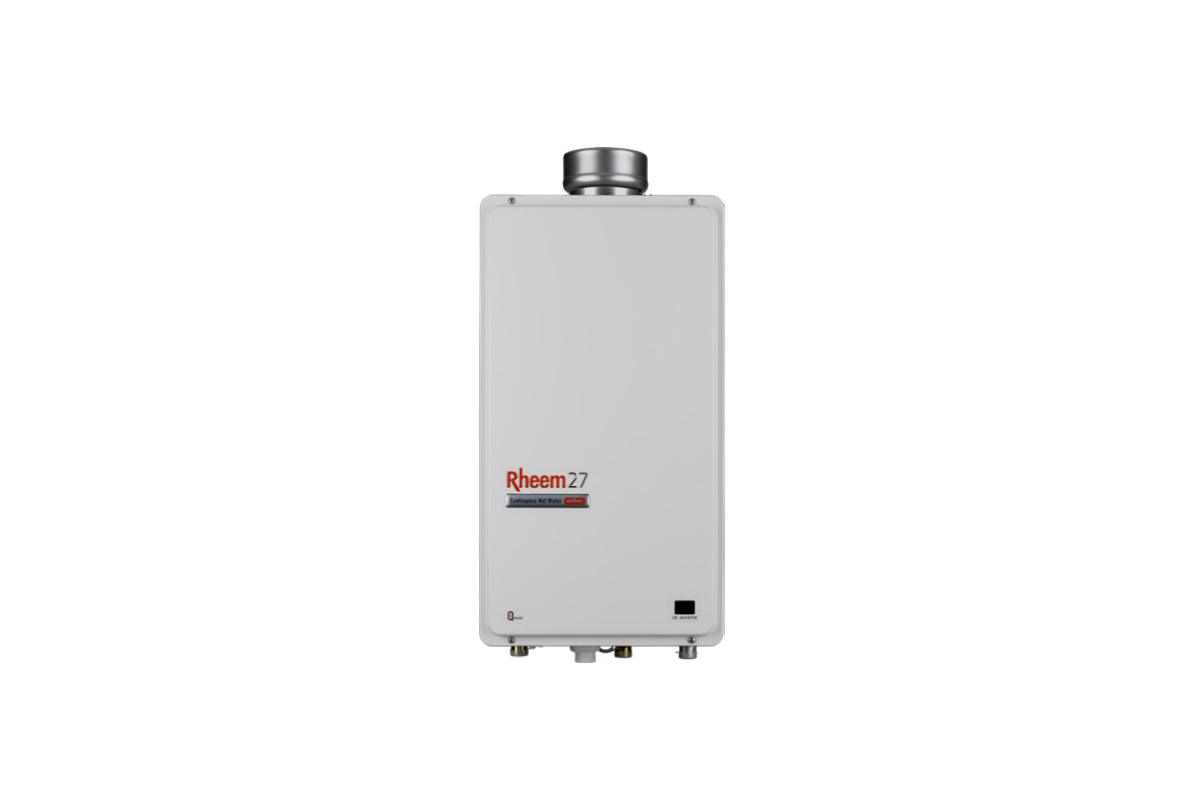

Rheem 27 Continuous Flow Gas Water Heater
