Suitable for

• indoor and outdoor installations

• mains and low pressure systems

• residential and commercial water heating applications

• right hand plumbing connections (90, 135, 180 L)

• left or right hand plumbing connections (215, 275, 340 L)

Hard or aggressive water will need to be treated in order to use this product, please test before use.

Not suitable as a spa or pool heater.

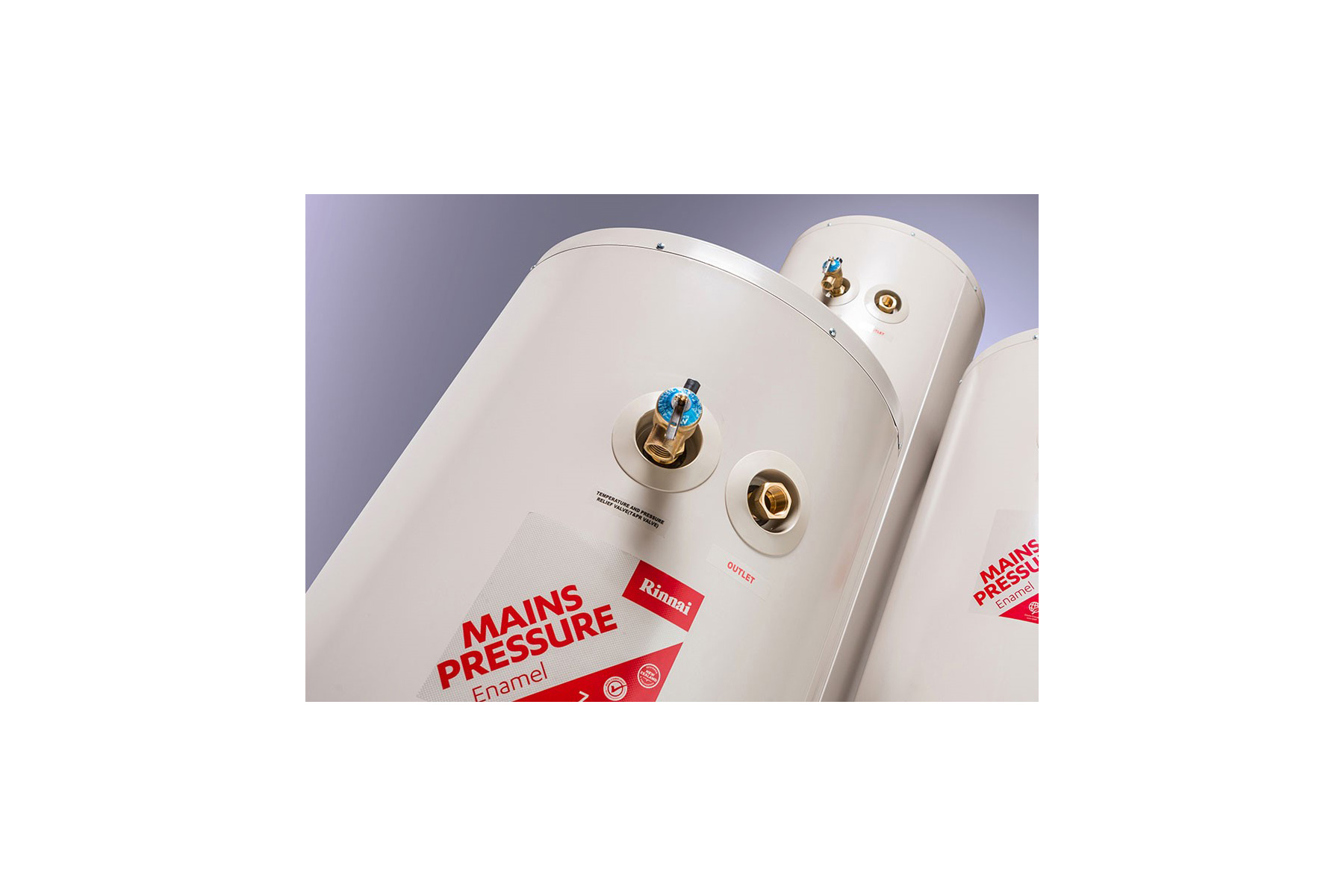

Construction:

Vitreous enamel lined inner cylinder. Sturdy corrosion resistant outer casing, and high density expanded polyurethane foam insulation.

Connections:

Hot and cold water connections ¾ " (20 mm)

Element:

cTech element positioned at the bottom of the cylinder

Pressure limiting valve:

500 kPa (approx.) all models

Cold water pressure relief valve:

700 kPa (approx.) all models

Thermostat:

The thermostat setting is between 60-75 °C. Maximum thermostat setting, in order to maintain the warranty, is 75 °C.

TPR:

Rating of the TPR supplied with the cylinder is 10 kW / 85 kPa, 99 °C

Weights:

90L: 44kg empty, 134kg full

135L: 56kg empty, 191kg full

180L: 71kg empty, 251kg full

215L: 83kg empty, 298kg full

275L: 87kg empty, 364kg full

340L: 101kg empty, 441kg full

Cylinder recovery times:

90L: Recovery Time 1: 2 hrs 38 mins 2 kW (34.3 L/h) Recovery Time 2: 1 hr 45 mins 3 kW (51.7 L/h)

135L: Recovery Time 1: 3 hrs 56 mins 2 kW (34.6 L/h) Recovery Time 2: 2 hrs 37 mins 3 kW (51.3 L/h)

180L: Recovery Time 1: 5 hrs 15 mins 2 kW (34.3 L/h) Recovery Time 2: 3 hrs 30 mins 3 kW (51.4 L/h)

215L: Recovery Time 1: 3 hrs 29 mins 3.6 kW (61.8 L/h)

275L: Recovery Time 1: 4 hrs 28 mins 3.6 kW (61.7 L/h)

340L: Recovery Time 1: 5 hrs 31 mins 3.6 kW (61.7 L/h)

Warranty: 7 Years
