Suitable for:- external residential applications only- mains and medium pressure systems
Hard or acidic water will need to be treated to use this product.
Not suitable:- as a spa or swimming pool heater- for hydronic applications- as a gas boost for solar connections
Gas type: Available for Natural Gas or LPG, specify at the time of purchase
Available fixed temperatures: 40, 42, 50, 55, 60, 65 °C
Codes and REU numbers:
A16: INFA16N/L, REU-A1620WG-ZK
A20: INFA20N/L, REU-A2024WG-ZK
A24: INFA24N/L, REU-A2426WG-ZK
A26: INFA26N/L, REU-A2626WG-ZK
Hot water capacity:
A16: 1.5-16 L/min
A20: 1.5-20 L/min
A24: 1.5-24 L/min
A26: 1.5-26 L/min
Input and output:
A16: Input MJ/h: 16.3-124 / Output kW: 27.8
A20: Input MJ/h: 19.9-156 / Output kW: 34.9
A24: Input MJ/h: 16.3-184 / Output kW: 42.0
A26: Input MJ/h: 16.3-199 / Output kW: 44.5
Exhaust system: Forced flue
Frost protection: Fitted as standard. Frost protection operates automatically, as long as the appliance is connected to the electrical power supply, by activating when the temperature inside the unit drops below 3.5 °C, and turns off once the temperature inside the unit reaches 7 °C.
Ignition system: Direct electronic ignition
Injector sizes:
A16: NG: 0.9, 1.50 / LPG: 0.71, 1.09
A20-A26: NG: 1.08, 1.80 / LPG: 0.73, 1.12
Line pressure (min.): NG - 1.13kPa, LPG - 2.75 kPa
Line pressure (max.): 3.5 kPa (maximum standing pressure under abnormal intermittent conditions is 5.0 kPa). In the case of commercial metering, (i.e. 35-37 kPa coming in), there may be a requirement to regulate the incoming pressure down.
Power consumption:
Normal: 47 W (A16), 58 W (A20), 56 W (A24), 66 W (A26)
Standby: 2 W
Automatic frost protection: 68 W
Pressure relief: Valve opens at 2060 kPa, closes at 1470 kPa
Water supply: Nominal operating Pressure:
A16: 120-1000 kPa
A20: 160-1000 kPa
A24 & A26: 200-1000 kPa
Activation flow rate: 1.5 litres per minute
Please note: If the water inlet pressure or flow rate drops below the minimum values stated above, operation of the INFINITY is not guaranteed. The unit requires both minimum flow rate and pressure to operate correctly.
Noise level: 50 dB(A). Some people are susceptible to low level noise. This needs to be considered if locating an appliance near a bedroom.
NOx af: 35 ppm
Safety devices: Flame failure, Boil-dry protection, Overheat protection, Fusible link, Pressure relief valve, Combustion fan RPM check
Weights: A16: 13 kg, A20: 14 kg, A24/A26: 15 kg
Compliance: Energy Safety Supplier Declaration of Compliance declaration numbers:
A16 - 1825920179
A20 - 1825820179
A24 - 1825720179
A26 - 1825620179
Market release: 2018
See warranty information in Product Downloads
Gas & electric hot water heating brochure
Rinnai INFINITY continuous flow water heating spec guide
Rinnai INFINITY continuous flow operation guide
EF26 and A-Series installation guide
A-Series product technical statement
A-Series seismic force calculation
A-Series exploded diagrams and spares list
Rinnai INFINITY warranty
Only on when you need hot water

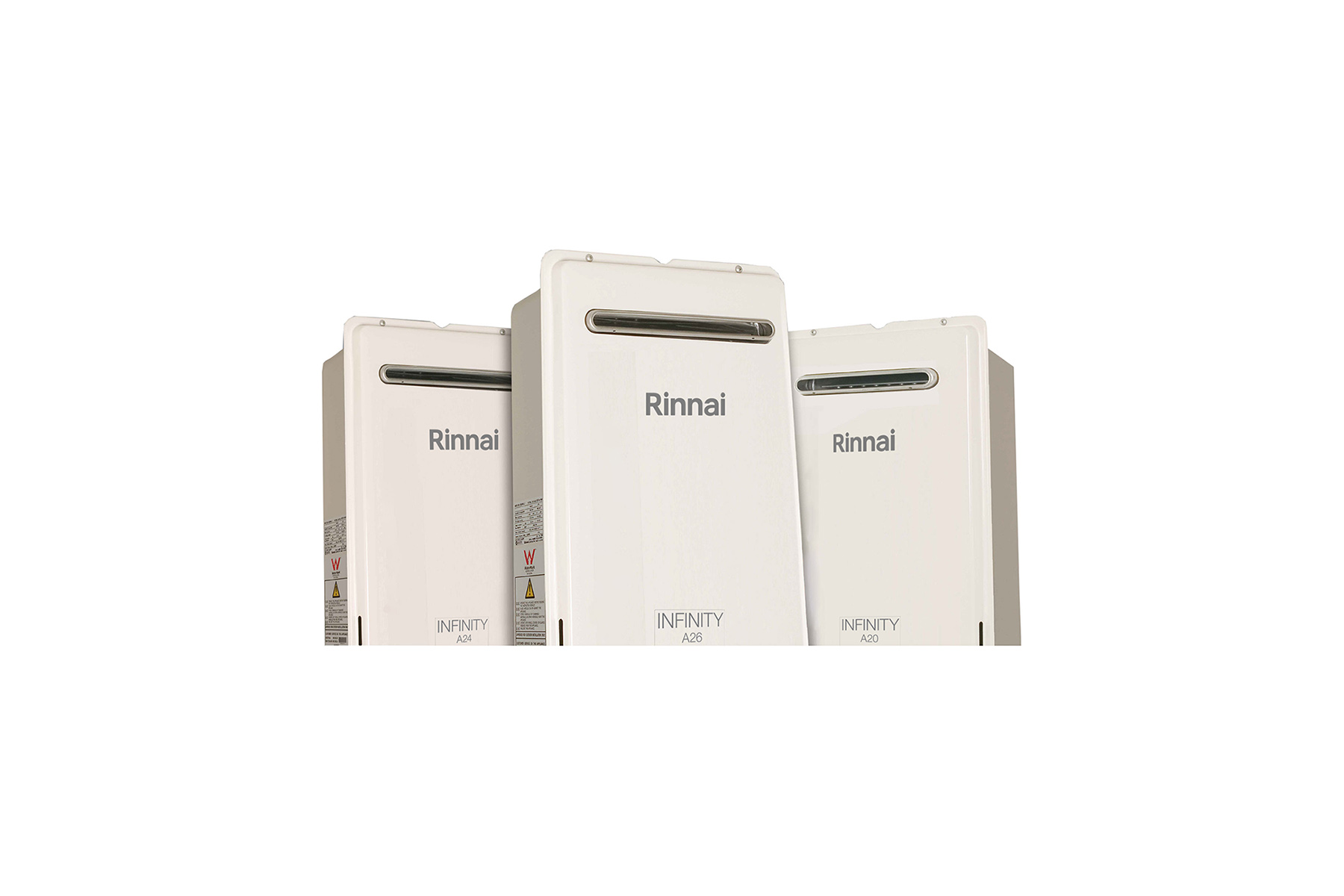

The Rinnai INFINITY A-Series are continuous flow hot water systems for residential applications. These water heaters produce endless hot water, and unlike electric cylinders, are energy efficient as they are only on when you need hot water.
There are four models to choose from depending on your hot water needs. Model numbers represent hot water capacity, for example the A26 produces 26 litres of hot water per minute at a 25 ° Celsius rise.
How to remove and check the inlet water filter video:
https://www.youtube.com/embed/7yT11fb9bdA?si=eBdweHHt8Vu2_rB9
Peter Cocks Dairy Hot Water Cylinders
Rinnai INFINITY® N-Series

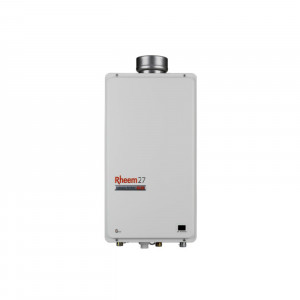

Rheem 27 Indoor Continuous Flow Gas Water Heater
