Delivery of 26 L/min, perfect for NZ homes
RRP is now within 10% of the Rinnai INFINITY A26
30% lighter and smaller than the EF24 model
Uses 11% less energy than the Rinnai INFINITY A26
Inbuilt condensate neutraliser
Suitable for- external residential applications only- mains and medium pressure systems
Hard or acidic water will need to be treated to use this product.
Not suitable- as a spa or swimming pool heater- for hydronic applications- as a gas boost for solar connections
Gas type: Available for Natural Gas or LPG, specify at the time of purchase
Colour: White
Factory preset temperature: 55 °C
Model code and REU number: EF26 → E2626W-ZK
Hot water capacity: 26 L/min (1560 L/h) at a 25 °C rise
Exhaust system: Forced flue
Frost protection: Fitted as standard. Frost protection operates automatically, as long as the appliance is connected to the electrical power supply, by activating when the temperature inside the unit drops below 3.5 °C, and turns off once the temperature inside the unit reaches 7 °C.
Ignition system: Direct electronic ignition
Line pressure (min.): NG - 1.13kPa, LPG - 2.75 kPa
Line pressure (max.): 3.5 kPa (maximum standing pressure under abnormal intermittent conditions is 5.0 kPa).
In the case of commercial metering, (i.e. 35-37 kPa coming in), there may be a requirement to regulate the incoming pressure down.
Power consumption: Normal 63 W, standby 2 W, and automatic frost protection 92 W
Pressure relief: Valve opens at 2060 kPa; Valve closes at 1479 kPa
Noise level: 50 dB(A) approx. Some people are susceptible to low level noise. This needs to be considered if locating an appliance near a bedroom.
Safety devices
Flame failure
Boil-dry protection
Overheat protection
Fusible link
Pressure relief valve
Combustion fan RPM check
Water supply: Nominal operating pressure: 220-1000 kPa. Activation flow rate: 1.5 litres per minute
Please note: If the water inlet pressure or flow rate drops below the minimum values stated above, operation of the INFINITY is not guaranteed. The unit requires both minimum flow rate and pressure to operate correctly.
Weight: 18 kg
Compliance: Energy Safety Supplier Declaration of Compliance: Declaration number - 1923220199
Market release: Mar 2020
See warranty information in Product Downloads
Gas & Electric Hot Water Heating Brochure
Rinnai INFINITY continuous flow water heating spec guide
Rinnai INFINITY continuous flow operation guide
EF26 and A-Series installation guide
EF26 product technical statement
EF26 exploded diagrams and spares list
Rinnai INFINITY warranty

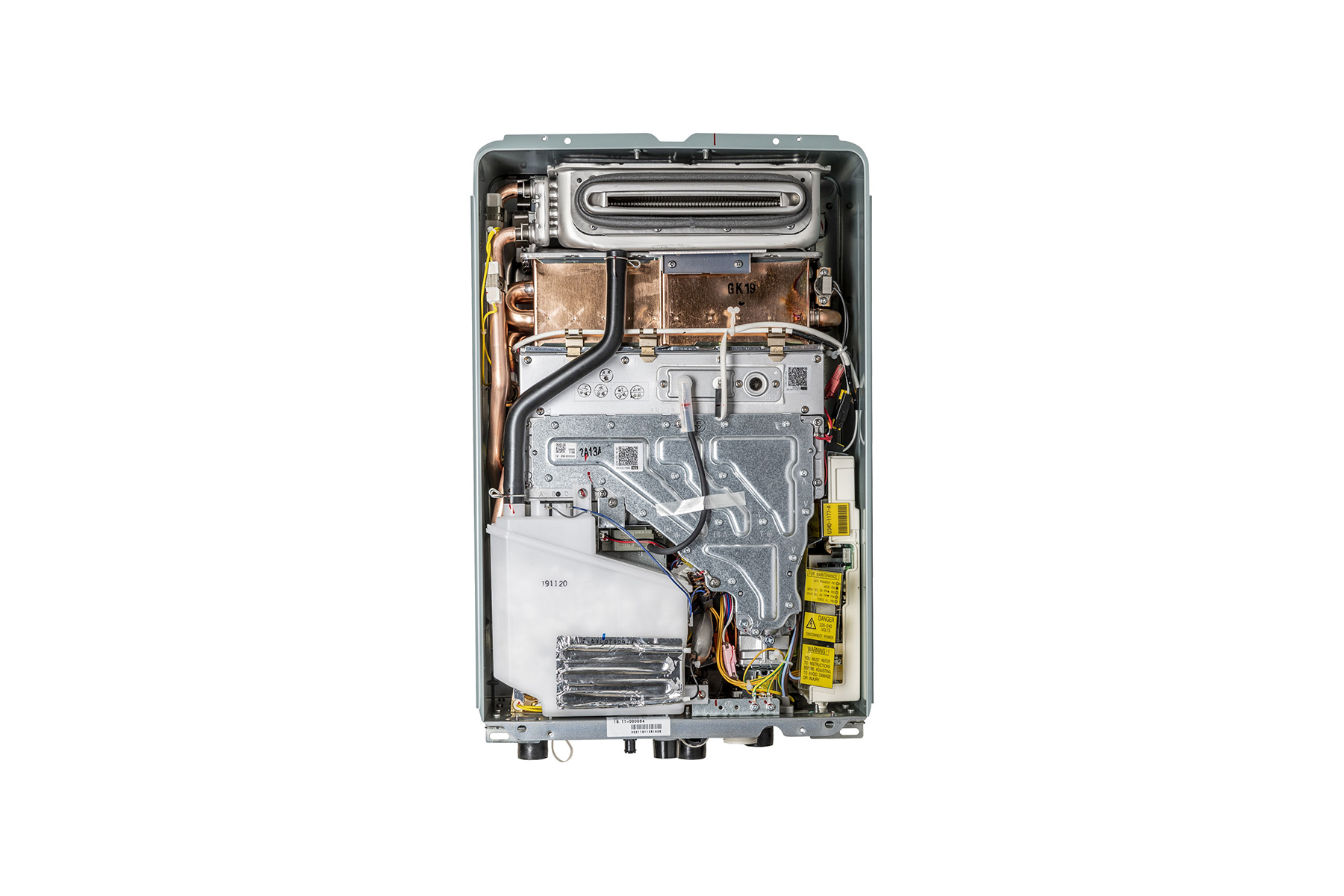

The Rinnai EF26 is a condensing gas continuous flow hot water heater which captures waste heat from the flue gas, through the use of a secondary heat exchanger, to help heat the water with less energy.
