More details

Free Shipping.

Bury up to 500mm deep with clean backfill.

Super tough dome – with space frame substructure

Outlet(s): 2 x 50mm (2 inch) brass BSPT fittings.

11 colours Click on specification or download for more information.

Max working temperature: 30ºC

Raw material standards: AS/NZS 2070 – Food contact requirements

AS/NZS4020:2005 – Potable drinking water

AS/NZS4766 Polyethylene storage tanks for water

Complying water tank standard: AS/NZS4766 Polyethylene storage tanks for water

Maximum no. of moulded in outlets: 4

Outlet location(s) – standard: 1 & 7 o’clock

Lifting eyes: 4 (1, 5, 7 & 11 o’clock)

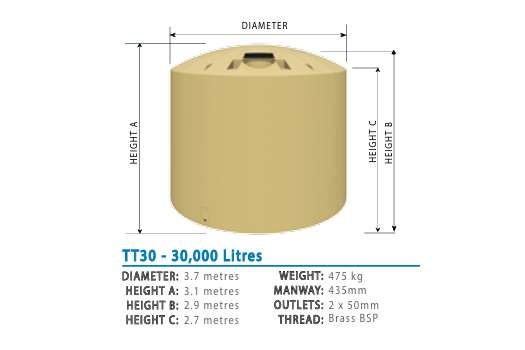

Diameter: 3.7m

Overall height: 3.1m

Weight: 475Kg

Overflow height: 2.7m

Overflow panels: 4 off (1, 5, 7 & 11 o’clock)

Height to dome part line: 2.58m

Outlet size: 50mm BSPT (2 off)

Outlet – base to centre line: 115mm

Manhole opening size: 435mm (located at 6 o’clock)

20 Year Warranty

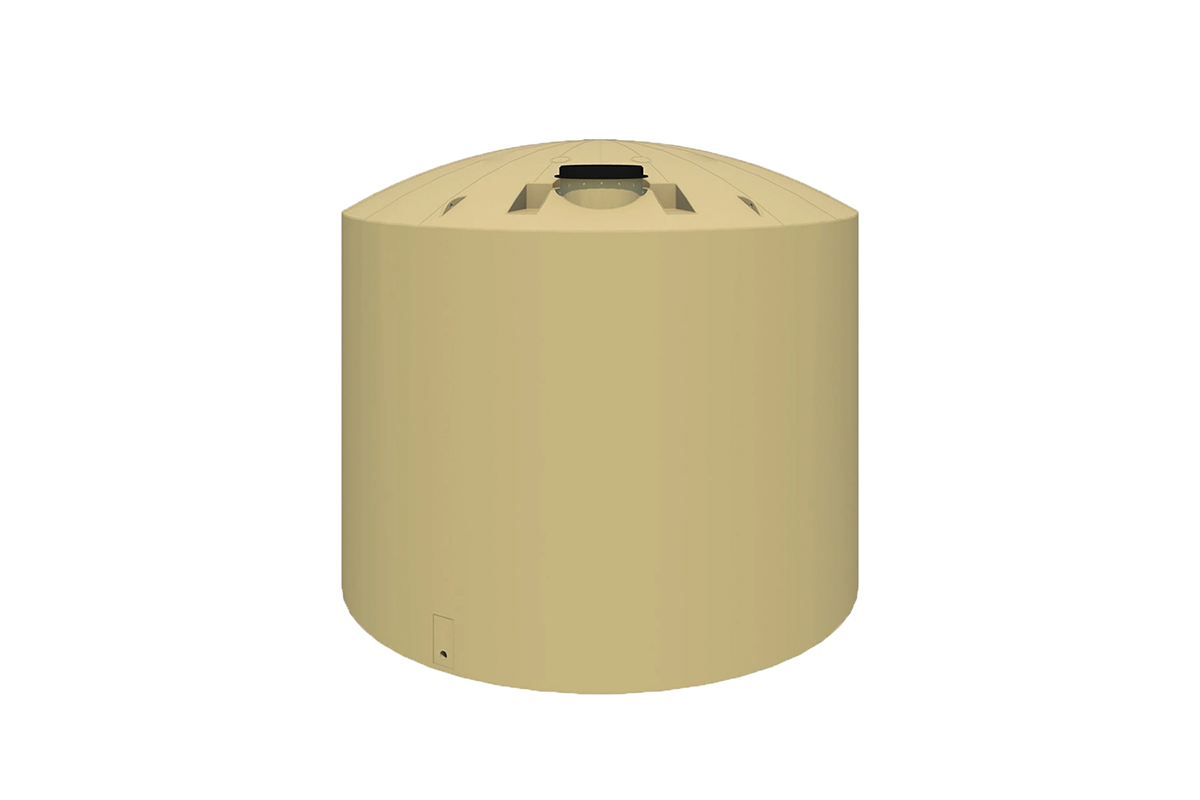

30,000L Devan Plastic Water Tank

Devan tanks are the only tank that comes with brass moulded outlets. Having metal outlets allows for easy plumbing that is solid and eliminates any risk of cross-threading. Better yet, the big tanks come with two of them as standard!

The unique Devan space frame provides for maximum strength in the dome of your tank which means it won’t pop in when you are installing or servicing your tank nor will snow loading have an effect. Devan Tanks come vented for domestic use as standard. Suctioned domes are the number one cause of failure with water tanks and this built-in feature, combined with the Devan vented overflow kits (optional extra), will eliminate this issue for Devan tank owners.

More details

Free Shipping.

Bury up to 500mm deep with clean backfill.

Super tough dome – with space frame substructure

Outlet(s): 2 x 50mm (2 inch) brass BSPT fittings.

11 colours Click on specification or download for more information.

Max working temperature: 30ºC

Raw material standards: AS/NZS 2070 – Food contact requirements

AS/NZS4020:2005 – Potable drinking water

AS/NZS4766 Polyethylene storage tanks for water

Complying water tank standard: AS/NZS4766 Polyethylene storage tanks for water

Maximum no. of moulded in outlets: 4

Outlet location(s) – standard: 1 & 7 o’clock

Lifting eyes: 4 (1, 5, 7 & 11 o’clock)

Diameter: 3.7m

Overall height: 3.1m

Weight: 475Kg

Overflow height: 2.7m

Overflow panels: 4 off (1, 5, 7 & 11 o’clock)

Height to dome part line: 2.58m

Outlet size: 50mm BSPT (2 off)

Outlet – base to centre line: 115mm

Manhole opening size: 435mm (located at 6 o’clock)

20 Year Warranty
