Suitable for:
indoor installations only
mains and low pressure systems
residential water heating applications only
Not suitable as a pool or spa heater.
Water qualityRinnai cylinders are manufactured to suit most NZ council water supplies. However some supplies can have a detrimental effect on the cylinder, its operation and life expectancy.
Water supplies with a high level of calcium carbonate (hard water) can cause scaling on hot surfaces. We recommend a temperature of no more than 65 °C to minimise scale buildup. Scale reducing or water softening devices should be considered in hard water areas. The unit is not guaranteed against damage due to scaling.
Anode:
High performance anode fitted
Connections:
Hot and cold water connections ¾ " (20 mm)
Construction:
Inner cylinder: High grade enamel steel Outer casing: Galvanised steel
Element:
Long-life Superloy 825 alloy sheathed element. Incorporated into an easily removable outer plate should replacement be necessary.
Maximum operating pressure:
850 kPa
Pressure testing:
To 15 bar
Thermal insulation:
CFC-free polyurethane foam, compliant with MEPS standard
Thermostat:
Robert Shaw 30 A contact thermostat, manually resettable at 85 °C
TPR valve:
Rating of TPR supplied with cylinder— factory set to 850 kPa and 90 °C.
Warranty: 7 Years

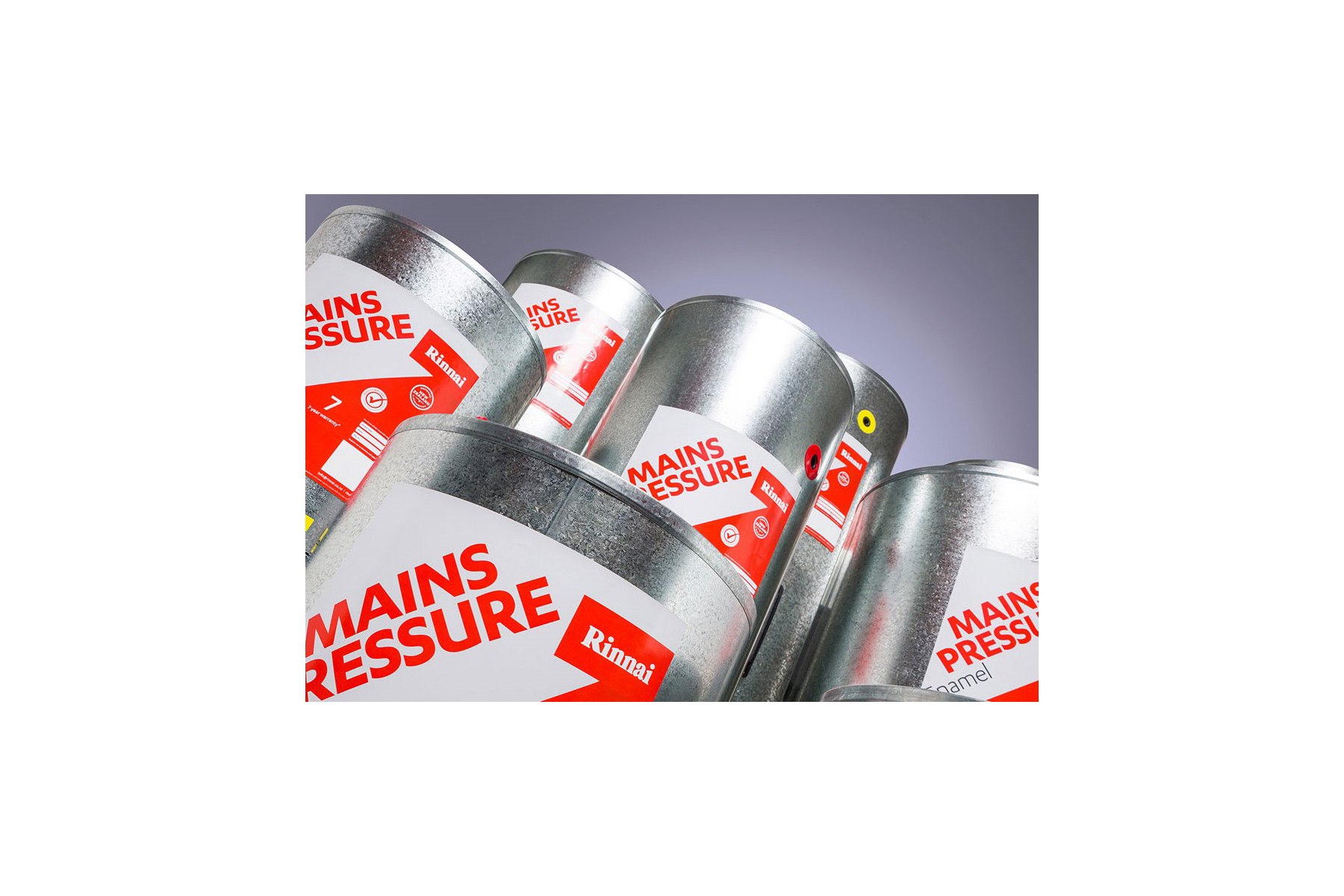

Rinnai enamel mains pressure indoor hot water cylinders offer exceptional performance and reliability under a wide variety of water conditions. With a range of slim diameters, they are an easy replacement option for your old electric cylinder.
large range of sizes (30-300 L), there's a cylinder to suit every need
easy replacement, 488 and 590 mm diameter sizes, matches traditional NZ cylinder sizes
