Code: TT15F

Specific gravity – max1.2

Max working temperature 30ºC

Raw material typeMedium density polyethylene

Raw material standards: AS/NZS 2070 – Food contact requirements

AS/NZS4020:2005 – Potable drinking water

AS/NZS4766 Polyethylene storage tanks for water

Complying water tank standard: AS/NZS4766 Polyethylene storage tanks for water

Manhole opening size: 435mm (located at 6 o’clock)

Maximum no. of moulded in outlets: North Island: 3, South Island: 4

Outlet location(s) – standard 1 & 7 o’clock

Other available locations – non standard: North Island: 5 o’clock, South Island: 5 o’clock & 11 o’clock

Lifting eyes: 4 (1, 5, 7 & 11 o’clock)

Bury up to 1000mm deep with clean backfill.

Super tough dome

Outlet(s): 1 x 100mm (4 inch) tank fitting and 1 x 50mm (2 inch) brass BSP fitting

11 colours

Empty weight: North Island: 325kg South Island: 325kg

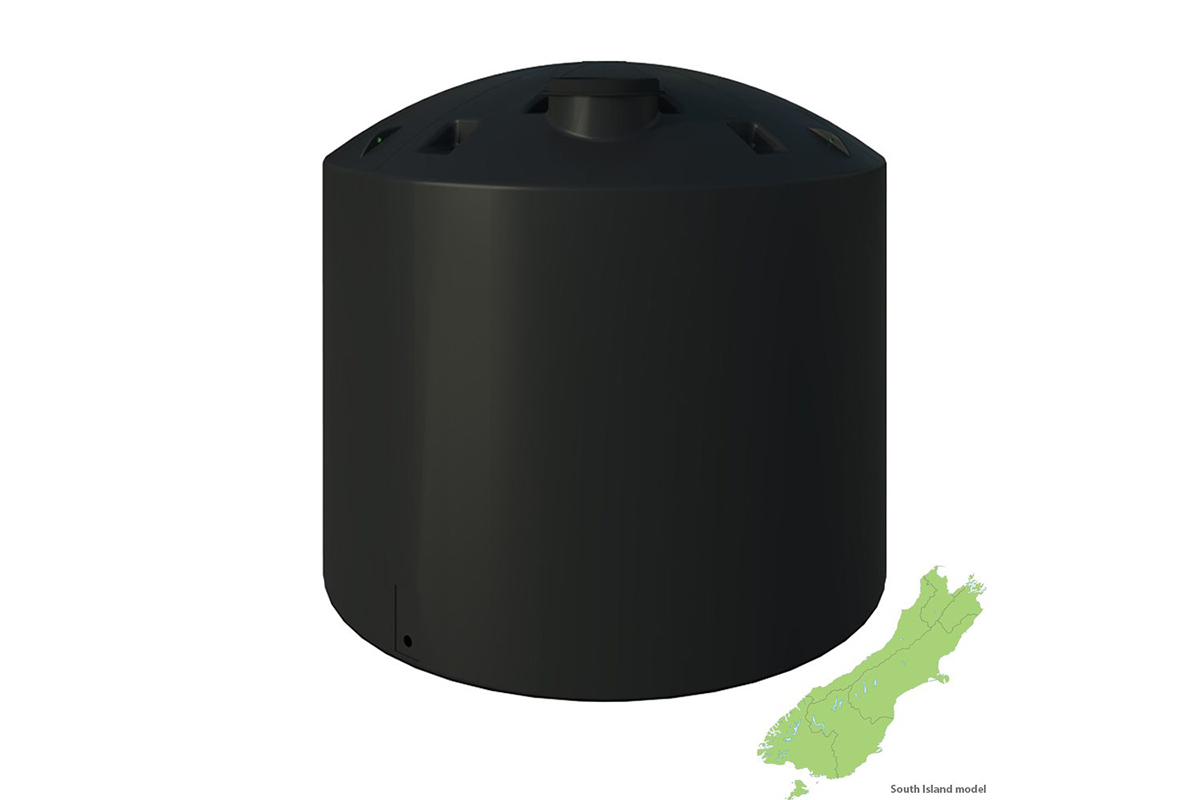

Diameter: North Island: 3.5m, South Island: 2.9m

Overall height: North Island: 2m, South Island: 2.6m

Overflow height: North Island 1.6m, South Island: 2.2m

Overflow panels 4 off (1, 5, 7 & 11 o’clock)

Height to dome part line: North Island 1.4m, South Island: 2.1m

Outlet size: 1 x 100 tank fitting and 1 x 50mm BSP

Residential - 20 Year Warranty

Commercial - 10 Year Warranty
