Suitable for: External commercial and residential applications (HD200 and HD250 external models only). Internal commercial and residential applications (HDi200 internal model only). Mains and medium pressure systems. Hard or acidic water will need to be treated to use this product.
Not suitable: as a spa or swimming pool heater or for hydronic applications
Gas type: Available for Natural Gas or LPG, specify at the time of purchase
Codes and REU numbers:
HD200/ Code NG: INFHD200HNCN / Code LPG: INFHD200HNCL / REU: REU-VRM2632WC
HDi200/ Code NG: INFHD200FFNCFN / Code LPG: INFHD200FFNCFL / REU: REU-VR2632FFUG
HD250/ Code NG: INFHD250HNCN / Code LPG: INFHD250HNCL / REU: REU-VR3237WG
Hot water capacity:
HD200, 2.4-30 L/min, nominal water capacity is 26 L/min at a 25 °C rise (1560 L/h)
HDi200, 2.4-32 L/min, nominal water capacity is 26 L/min at a 25 °C rise (1560 L/h)
HD250, 2.4-37 L/min, nominal water capacity is 32 L/min at a 25 °C rise (1920 L/h)
Input and output:
HD200/ Input: 199 MJ/h or 55 kW / Output kW: 45.9 kW
HDi200/ Input: 195 MJ/h or 54 kW / Output kW: 44.5 kW
HD250/ Input: 249 MJ/h or 69 kW / Output kW: 57.8 kW
Hot water connections:
Hot water outlet R¾ (20 mm)
Cold water inlet R¾ (20 mm)
Gas supply R¾ (20 mm)
Ignition system: Direct electronic ignition
Exhaust system: External unit - forced flue, Internal unit - room sealed forced flue
Frost protection: Fitted as standard. Frost protection operates automatically, as long as the appliance is connected to the electrical power supply, by activating when the temperature inside the unit drops below 3.5 °C, and turns off once the temperature inside the unit reaches 7 °C.
Injector sizes:
HD200/ NG: 1.25, 1.95 / LPG: 0.75, 1.15
HDi200/ NG: 1.00, 1.70 / LPG: 0.75, 1.15
HD250/ NG: 1.00, 1.65 / LPG: 0.75, 1.15
Ingress protection rating: IPX4
Line pressure (min.): NG - 1.13kPa, LPG - 2.75 kPa
Line pressure (max.): 3.5 kPa (maximum standing pressure under abnormal intermittent conditions is 5.0 kPa). In the case of commercial metering, (i.e. 35-37 kPa coming in), there may be a requirement to regulate the incoming pressure down.
Noise level: 59 dB(A). Some people are susceptible to low level noise. This needs to be considered if locating an appliance near a bedroom.
NOx af: less than 60 ppm
Power consumption:
HD200, normal 48 W (NG), 60 W (LPG), automatic frost protection 100 W
HDi200, normal 64 W (NG), 67 W (LPG), automatic frost protection 100 W
HD250, normal 72 W, automatic frost protection 116 W
All units have a standby of 2 W
Pressure relief: Valve opens at 2060 kPa, closes at 1470 kPa
Safety devices: Flame failure, Boil-dry protection, Overheat protection, Fusible link, Pressure relief valve, Combustion fan RPM check
Water supply: Nominal operating pressure:
HD200: 130-1000 kPa
HDi200: 140-1000 kPa
HD250: 200-1000 kPa
Activation flow rate: 2.4 litres per minute
Please note: If the water inlet pressure or flow rate drops below the minimum values stated above, operation of the INFINITY is not guaranteed. The unit requires both minimum flow rate and pressure to operate correctly.
Weights: HD200/HDi200 - 21 kg, HD250 - 29 kg
Compliance: Energy Safety Supplier Declaration of Compliance declaration numbers:
HD200 - 12410201012
HDi200 - 10978200911
HD250 - 10996200911
Market release:
HD200/HD250, first launched 2010 and then relaunched in 2011
HDi200 - 2011
Gas and electric hot water heating brochure
Rinnai INFINITY continuous flow water heating spec guide
Rinnai INFINITY continuous flow operation guide
HD-Series installation guide
HD-Series product technical statement
HDi200 internal flue installation guide

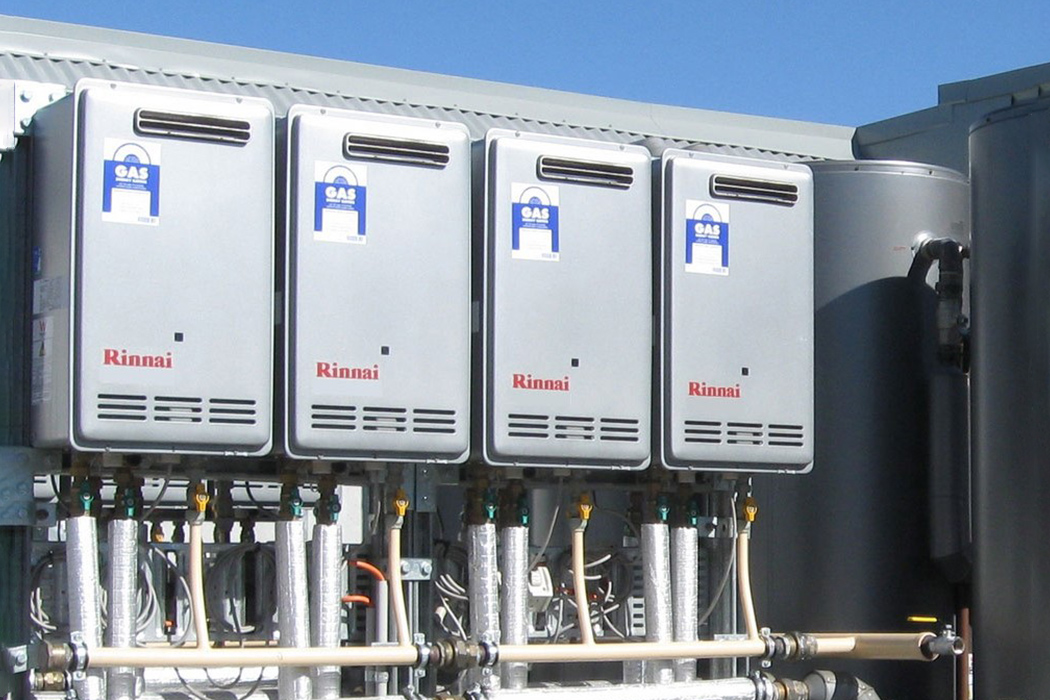

HD-Series manifolding information
HD200 exploded diagrams and spares list
HDi200 exploded diagrams and spares list
HD250 exploded diagrams and spares list
Commercial maintenance and servicing schedule
Rinnai INFINITY warranty
Heavy duty on demand for demanding jobs
Rinnai INFINITY HD units are higher capacity gas continuous flow water heaters for applications where higher flow rates and higher temperatures are needed. The HD250 model can be set up to 95 °C.
The HD200 has an inbuilt status monitor, which has an added feature of displaying an LC (00) error code when the unit requires cleaning (due to scale build-up).
Three models to choose from:
HD200 external unit with status monitor
HDi200 internal unit
HD250 external unit
Rinnai INFINITY® N-Series

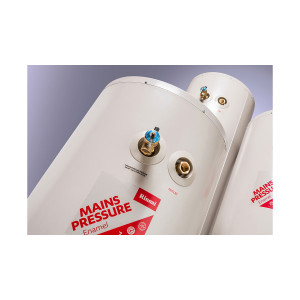

Rinnai Enamel Mains Pressure Indoor Outdoor Cylinders
